Sinter oven HT-2/M/Zirkon-120

Order number: 670966

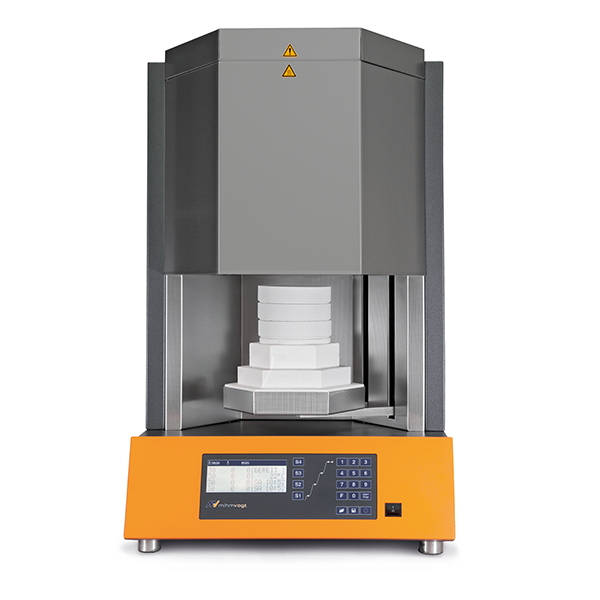

Sinter oven HT-2/M/Zirkon-120
Image can differ
Description

For 90 single crowns or for a sintering disc

Note

For the purchase of this product please contact our service team

Request offer
Order number: 670966
HT-2 - larger capacity for a higher level of performance With the larger heating chamber,... more
Product information "Sinter oven HT-2/M/Zirkon-120"

HT-2 - larger capacity for a higher level of performance

With the larger heating chamber, the furnace can process three sintering trays Ø = 120 mm in one conventional long-term sintering process. The heating system with six high-quality molybdenum disilicide heating elements (MoSi2) facilitates SPEED-sintering processes within 76 min. These extraordinary features provide an optimal basis for dental labs and milling centers.

HT-2 is operated with a simple, self-explanatory program control. 4-line LCD-display, timer for overnight sintering, drying programs for wet-machined restorations. Three service programs for the maintenance of heating chamber and heating system are available.

90 single crowns or sintering disc

  • Molybdenum disilicide heating elements PRO
  • Max. temperature: 1650 °C
  • Performance max.: 3800 W
  • Capacity of the sintering chamber: 3 x Ø 120/30 mm
  • Height of the sintering chamber: 102 mm
  • Number of heating elements: 6
  • Program control (LCD-display, 4 stages, 30 program slots)
  • Service programs
    A - Temperature control* (only in conjunction with test-kit)
    C - Purge heating chamber
    E - Regenerate heating elements
  • Thermo couple: PtRh-Pt, type S
  • Temperature accuracy at 1500 °C: +/-3 °C
  • Timer
  • Weight: 74 kg
  • Dimensions W/D/H: 500/560/820 mm
