Clinical and instrumental function analysis is an important precondition for dental restorations and an excellent tool for the early diagnosis of craniomandibular dysfunction (CMD), especially when preparing an implant supported restoration. Offer your patients outstanding security with the precise and easy-to-handle zebris system.
Filter
The item has been added to your inquiry list
Tizian JMA Optic System by zebris
Welcome to the world of functional digital dentistry - the new dimension of the function-oriented digital workflow: The JMA Optic - precise, safe, fast and economic! The JMA Optic System is based upon the latest optical sensor technology and thus, it is the latest development in the field of functional dentistry. Your benefits: Safe prosthetics Forensic backstop Documentation Additional profits Happy patients Digital image for your dental clinic Decisive advantage towards your competition Real Movement: Transfer real patient data or the settings of virtual articulators via a standardized XML-export to external CAD systems (Tizian CAD/CAM System). With this extraordinary feature, the system becomes an integral component of Schütz Dental's Digital Workflow for the production of functional dental prostheses. A patented bite tray creates a precise relation between the movement data of the measuring system and the tooth surfaces scanned by the model scanner (Tizian Smart-Scan Plus) or the Intraoral Scanner (i500). This tray is also a part of the new zebris transfer appliance and facilitates a smooth transfer of the position of the maxilla in relation to the skull to a mechanical articulator. Thus, the use of a mechanical facebow becomes unnecessary. Precise: The analyser consists of a manageable stand-alone headbow with a mandible sensor. Aside from scanning the condyle movement, the user can also record all six mobility levels of the mandible with high precision. Fast: The user has the option to operate the system via a USB interface or wireless via WiFi. The headbow is attached in just a few steps with the nasion support, a head band and the support parts fixed to spring-mounted sidebars. Enter a defined reference plane with the supplied T-stylus right on the head. Safe: The table-top mount contained in the basic system facilitates a safe storage of the measuring components, whereas the battery powered headbow can be charged simultaneously via the integrated inductive charger. The extremely small and light mandible sensor is fixed with the help of a magnet to the paraocclusal and occlusal attachments, and then it is connected to the lower-jaw teeth. The analysis software WINJAW+ with its modular setup can be handled intuitively and contains: a data base, the basic module for the determination of the setting parameters of mechanical and virtual articulators as well as the export function for real movements. Optional are additional modules for functional analysis, for position analysis of the condyles and for the determination of neuro-muscular jaw relations and the Plane Finder Module. The system contains: Electronic headbow Mandible sensor T-stylus Analysis software WINJAW+ with basic module articulator and data export Table mount/inductive charger Foot switch/manual switch (wireless) Attachments Instructions Transport case Optional: Various additional software modules The system is operated with a conventional computer equipped with the system software Windows 10. Basic color: white RAL 9003
zebris module functional analysis, for zebris JMT Function pro
Additional module for recording all levels of freedom of movement in the lower jaw.
zebris module EPA, for zebris JMT Function pro
The electronic position analysis of the condyles (EPA) allows you to compare different occlusion positions and it can thus lead you to detect possible pain vectors in the jaw joint. You will see how the position of the condyles in the joint changes. Additional measuring modules (optional) determine the palatinal posterior tooth correction as well as the analysis of mastication movements.
zebris digital transfer table, for JMAnalyser+
The digital transfer table for the zebris JMAnalyser+ system facilitates the transfer of a jaw position to the Artex Articulator with help of a bite fork type SD. Scope of delivery: 3 bite forks type SD with screw thread Bite fork adapter System case 1 set of positioning screws (3 pcs. of each type) 5 positioning foils

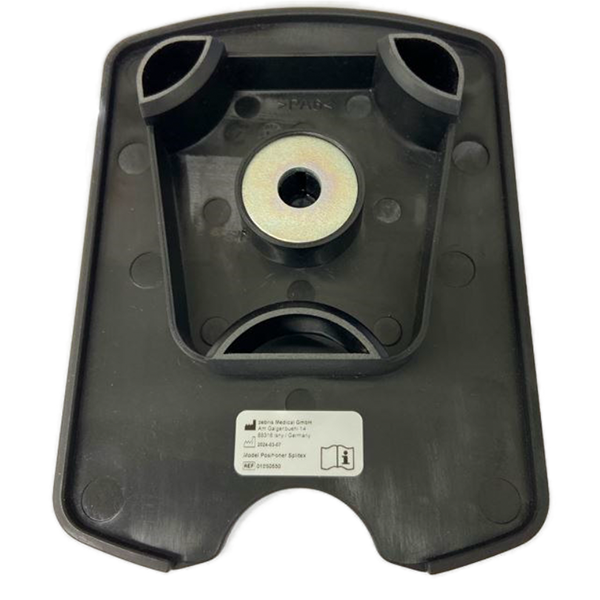

Zebris digital transfer table, for Artex crtikulator with Splitex Split system
For your zebris JMAnalyser+ system or your Tizian JMA Optic system by zebris Facilitates the transfer of the jaw position to the Artex articulator with the Splitex® Split System. Includes 3 pc. bite fork, type SD with screw thread, bite fork adapter, set of positioning screws, 3 pc. fixing nuts, 5 pc. positioning foil and brief instructions.
zebris module for database configuration, for zebris JMT Function pro
Save your very precious time with the zebris database configuration module. There are more important things to do than having to concern yourself with bureaucracy and data base maintenance.Until now, a fixed export path is specified e.g. for the storage of patient data on the server of your practice network. This additional module lets you freely choose the data base export path. What's more: The patient data is now not only saved on the local computer, but this module creates an automatic daily data backup on the server of your practice. Of course, manual backups are still possible.Your benefits: Free choice of the export path Daily automatic backup of your patient data Enormous time-savings, lightens your workload
Articulator Galetti,
Articulator for the individual adjustment of your plaster models. Benefits: Immediate fitting for checking the impression material: You can check you impression results, while the patient is still there. Optimized kinematic reduced subsidence error when compared with conventional articulators, also without face bow transfer. Ideal forfunctional diagnostic purposes/fast occlusion analysis. Fast preparation of registration aids: Whether it’s a para-occlusal tray, impression material templates for incisal pins, ballistic registrations or conventional centering plates. Fast fitting perfectly supports all technical preparations for an impression. Manufacture of perfectly fitting silicone keys for condyle position analysis (zebris EPA) in the correct relation to the jaw. Optimized work flow when making and checking splints. Immediate fitting after a new impression means you can grind a splint straight away in the articulator, in the same sitting.

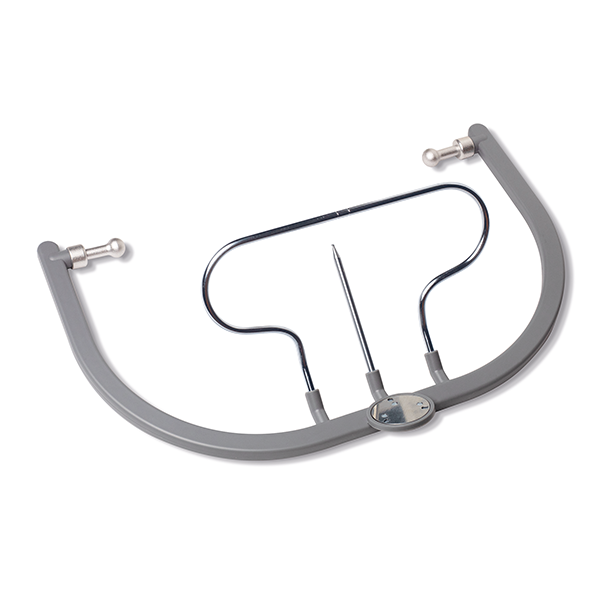

zebris C-bow, for Tizian JMA Optic System by zebris
The new C-bow for your Tizian JMA Optic System by zebris replaces the former T-pointer. Enter a defined reference plane of your patient's head with the C-bow. With its quick and easy handling, this accessory will offer you an your patient an even higher level of comfort during the measuring procedure.
zebris double electrode FIAB Typ F3010, Noraxon type 272
For attaching the zebris EMG electrodes to the indicated position on the patient’s body.
zebris PS-1 bite fork,
The PS-1 bite fork transfers the NHP (Natural Head Position) which was determined with the Plane Finder system. With help of this bite fork, the zebris systems learn the NHP of the upper jaw in the PS1 articulator. This way, the individual inclination of the condylar path can be detected from the lower jaw movements. The product serves as a connection between zebris systems and the Plane Finder System.
zebris screw set, for zebris digital transfer table
This screw set is necessary for positioning the bite fork on the model positioning device. The positioning screws with magnetic with magnetic base are intended to be used with the bite fork type SD. Scope of delivery: 3 x 30 mm 3 x 45 mm 3 x 60 mm
zebris para-occlusal attachment with lip bow, for Tizian JMA Optic System by zebris
Attachment for fixing the measuring sensors to the lower jaw incl. the lip bow. surgical steel can be sterilized exclusively suitable to use with the Tizian JMA Optic System by zebris (not suitable to use with ultrasound based zebris systems!)
zebris para-occlusal attachment with labial arch (deep/cover bite), Tizian JMA Optic System by zebris
Attachment for fixing the measuring sensors to the lower jaw incl. the lip bow. surgical steel can be sterilized exclusively suitable to use with the Tizian JMA Optic System by zebris (not suitable to use with ultrasound based zebris systems!)
zebris upper headband for maxilla bow, for maxilla bow
Upper headband for fixing the upper jaw facial bow to the patient's head. Compatible with JMA and JMA+.
Attachment with metal plate / bite fork adapter, for zebris coupling tray / bite fork
For the very first time, this innovation of the coupling tray in the zebris JMAnalyzer+ jaw measuring system (64 bit version) lets you transfer the real movements of your patient into the digital world. The data import into the Tizian CAD/CAM system (by Schütz Dental) is carried out with the patented coupling tray which is used as a face bow for the digital environment. Now, you can use the movement data of your patient with the Tizian Creativ RT CAD software. The name ""Real Movement"" describes it all! This tool of the zebris JMAnalyzer+ lets you exclusively record the real motion curve and the actual position of your patient's upper jaw. In the past, the virtual articulator could merely show the best possible simulation of the motion curve in relation to your patient's data. A recording of the actual state was not possible. From now on, you can record the real motion pattern of your patient and the actual course of motions in the mouth, and transfer this real data into the digital world via Tizian Creativ RT CAD software. The course of the movements is displayed in the software with help of the real jaw movements of the patient. This procedure is especially well suited for the production of fully anatomic (monolithic) restorations, which can be ground quickly and dynamically. The restoration is produced with an oustanding fit based upon the real situation inside the mouth and helps your patient keep a healthy and comfortable bite.
zebris Para-occlusal Attachment 90, long Version, medical steel
Attachment for fixing the sensor to the lower jaw, surgical steel, can be sterilized, magnetic plate and tube, long version
zebris positioning foil, for zebris model positioner
The zebris positioning foil is an adhesive foil to be used when positioning a model in Artex Articulator.
zebris coupling tray, bite fork, type SD
The innovation of the coupling tray in the zebris JMAnalyser+ jaw measuring system (64 bit version) lets you transmit the real movements of your patient to the digital world for the very first time. The data import into the Tizian CAD/CAM system (by Schütz Dental) is carried out with the patented coupling tray which is used as a face bow for the digital environment. Now, you can use the movement data of your patient with the Tizian Creativ RT CAD software. The name ""Real Movement"" describes it all! This tool of the zebris JMAnalyser+ lets you exclusively record the real motion curve and the actual position of your patient's upper jaw. In the past, the virtual articulator could merely show the best possible simulation of the motion curve in relation to your patient's data. A recording of the actual state was not possible. From now on, you can record the real motion pattern of your patient and the actual course of motions in the mouth, and transfer this real data into the digital world via Tizian Creativ RT CAD software. The course of the movements is displayed in the software with help of the real jaw movements of the patient. This procedure is especially well suited for the production of fully anatomic (monolithic) restorations, which can be ground quickly and dynamically. The restoration is produced with an oustanding fit based upon the real situation inside the mouth and helps your patient keep a healthy and comfortable bite.
zebris Occlusal Adapter (J-ATT), for attaching the UK sensor
Attachment for fixing the sensor to the lower jaw, medical steel, can be sterilized, magnetic plate + tubing (see item no. 522024)
zebris occlusal front tooth tray,
The occlusal attachment (item no. 522024 + 522018) is used in cases where there is a space issue, such as over bite or deep bite, and also for simpler recording such as articulator settings. The attachment is fixed to the anterior teeth with silicone.
