Surgery

Filter
The item has been added to your inquiry list
To my inquiry list
Module Implantology Tools, assembled, size M
Module Implantology Tools, assembled, size M
Adapt your IMPLA surgical box according to your individual needs. This compact tray contains all tools necessary for the insertion of an IMPLA Cylindrical or Micro Retention implants. As the tray manages without silicone plugs, it provides for a maximum of hygiene. This tray can be extended optionally.
Details
Module Mini-Kit Implantology, assembled, size M
Module Mini-Kit Implantology, assembled, size M
Adapt your IMPLA Mini surgical box according to your individual needs.  This compact tray contains all necessary drills and tools for the preparation of the implant site and for the insertion of IMPLA Mini Balltop and Conetop implants. As the tray manages without silicone plugs, it provides maximum hygiene. There is an option to extend the tray.
Details
Module Depth Stop long, assembled, size S
Module Depth Stop long, assembled, size S
For an even higher level of safety in implantology Accessory for IMPLA surgical drills (with suitable drill collar), causes a mechanical depth stop when drilling in the jaw bone. Simply slip the depth stop over the shaft of the drill. They are available in three diameters: narrow (brown), medium (red) and wide (blue). The color code and the print that shows the drilling depth respectively the implant length facilitate a match with the correct drill. The depth stops are available in the according implant lengths.
Details
Module Depth Stop short, assembled, size S
Module Depth Stop short, assembled, size S
For an even higher level of safety in implantology Accessory for IMPLA surgical drills (with suitable drill collar), causes a mechanical depth stop when drilling in the jaw bone. Simply slip the depth stop over the shaft of the drill. They are available in three diameters: narrow (brown), medium (red) and wide (blue). The color code and the print that shows the drilling depth respectively the implant length facilitate a match with the correct drill. The depth stops are available in the according implant lengths.
Details
Steribox S, empty, A8/ for 1 module
Steribox S, empty, A8/ for 1 module
Variante: für 1 Modul
Sterilization box available in sizes S, M and L, for the sterilization of surgical instruments.Dimensions size S (A8):  Outside dimensions: 90 x 90 x 55 mmInternal dimensions: 65 x 60 x 47 mm Dimensions size M (A6): Outside dimensions: 190 x 110 x 60 mmInternal dimensions: 165 x 92 x 49 mm Dimensions size L (A4): Outside dimensions: 290 x 190 x 60 mmInternal dimensions: 265 x 165 x 49 mm Sterisafe® DURO Sterilization container Sterility barrier and packaging system made from high-performance plastics Suited to almost all steam sterilization procedures under vacuum at temperatures of 121°C (249.8 °F) and 134°C (273.2 °F) as well as to low-temperature sterilization with gas (FORM and EO) and to H2O2/H2O2-plasma (in the following: VH2O2). Only tools which are suited to multiple sterilization and to this sterilization procedure must be sterilized in Sterisafe® DURO. Sterisafe® DURO sterilization container made from high-performance plastics: are translucent are highly shock-resistant (no dents) are >, pH 10 reprocessable can be sterilized with steam, plasma, EO or FO. are maintenance-free (no seal, no erosion), upper and lower part of the container close bacteria-proof according to Pasteur's principle are proven to save downtimes and service cost of your instruments have been well-proven for many years Sterisafe® DURO sterilization container have been designed in accordance with national / international standards and regulations DIN EN 868-1 and -8: 1999 DIN EN ISO 11607-1 and -2: 2006 CE marking in accordance with MDD 93/42 EWG
Details
torque ratchet,
torque ratchet,
A socket for the different tools, such as screwdrivers and tighteners, is located on the head of the ratchet. It restricts the torque previously set on the tensioning screw - between 0 and 30Ncm - by slipping off the ratchet head. This torque limit can be disabled by twisting the head, in order to tighten implants into the perfect position, for example. The direction of rotation is marked on the ratchet head. We recommend taking the ratchet apart for purposes of cleaning and sterilisation.
Details
Universal Drilling Guide,
Universal Drilling Guide,
The Universal Drilling Guide is a drilling aid and supports you when inserting the distal implants: Pilot drilling mesial without angulation. Starting from this situation you can align the implants with help of the Universal Drilling Guide in 0°, 20° and 30°. The Universal Drilling Guide is especially well suited for the Multi Unit System.
Details
Tubing set disposable 2m / 10 pieces, für MD 10, MD 11, MD 30
Disposable plastic tube set (10 pc. pack), supply line for supplying drills with cooling liquid
Details
Locator instrument, three-part,
Locator instrument, three-part,
Screwed stainless steel tip for removing retention inserts, mid section for repositioning the retention inserts, and gold coloured insertion aid for final screwing of the Locator®.
Details
Guide key for insertion aid,
Any loosening movement of the implant is prevented by pushing up the outer hexagon on the insertion post when releasing the retaining screw. Furthermore, the insertion post can be loosened if it ever jams.
Details
Countersink cutter 3.3 mm,
Countersink cutter 3.3 mm,
Variante: Bettfräser 3,3 mm
Site drill without internal cooling for shaping the implant silhouette in the bone of IMPLA implants Micro Retention or Dual Surface.
Details
Countersink cutter 3.4 mm for Cylindrical,
Countersink cutter 3.4 mm for Cylindrical,
Variante: Bettfräser 3,4 mm für Cylindrical
Gently prepare the implant site in bones of medium to high hardness. Site drill without internal cooling for shaping the implant silhouette in the bone for IMPLA Cylindrical implants.
Details
Enlargement drill short 2.75 mm for Cylindrical
Enlargement drill short 2.75 mm for Cylindrical
Variante: Erweiterungsbohrer kurz 2,75 mm für Cylindrical
Extension drill short, without internal cooling, diameters 2.75 mm, 3.0 mm, 3.7 mm, 3.9 mm, 4.6 mm and 4.9 mm for all IMPLA Cylindrical implant lines. Depth stops are available for all pilot drills and extension drills. These give the user security and control, even in difficult anatomical situations.
Details
Cortical drill 2.0/3.15 mm,
Cortical drill 2.0/3.15 mm,
Variante: Kortikal-Bohrer 2,0 / 3,15 mm
Without internal cooling. Ideally use on D1 and D2 bones. Cortical drill for the extension of 2 mm pilot drillings to 3.15 mm diameter of the next drill setting in the corticalis.
Details
Enlargement drill long 2.75 mm for Cylindrical,
Enlargement drill long 2.75 mm for Cylindrical,
Variante: Erweiterungsbohrer lang 2,75 mm für Cylindrical
Use this extension drill without internal cooling for the preparation of the implant site for IMPLA Cylindrical implants. The suitable drill diameter is selected from the drill protocol depending on implant diameter and drill depth.The drill depth in the bone is controlled with help of the depth marks on the drill. The drills with diameters 3.15 mm and 4.25 mm are available in a short version for use in the molar region.
Details
Enlargement drill short 2.5 mm,
Enlargement drill short 2.5 mm,
Variante: Erweiterungsbohrer kurz 2,5 mm
Extension drill, short, without internal cooling, diameters 2.5 mm, 3.15 mm and 4.25 mm for all IMPLA Micro Retention implant lines.Depth stops are available for all pilot drills and extension drill. These depth stops give the user security and control, even in difficult anatomical situations.
Details
Enlargement drill, long
Enlargement drill, long
Variante: 2,5 mm
Use this extension drill without internal cooling for the preparation of implant sites for IMPLA implant lines Dual Surface and Micro Retention. The suitable drill diameter is selected from the drill protocol depending on the implant diameter and the drilling depth.The depth inside the bone is controlled during the drilling process with help of the depth marks on the drill. The drills with the diameters 3.15 mm and 4.25 mm are available in a short version for use in the molar region.
Details
Tray Micro Retention short, empty, size S
Tray Micro Retention short, empty, size S
Micro Retention – predestined for application in a cancellous upper jaw boneThis compact tray comes without tools. In this tray, you can assort all your short drills (33.5 mm) which are necessary for the preparation of the implant site for an IMPLA Micro Retention implant.The intuitive set-up of the tray with a uniform color code and a special arrangement of the instruments provides for easy handling. As the tray manages without silicone plugs, it ensures maximum hygiene. Micro Retention Tray short, equipped with tools: article no. 635114
Details
Tray Cylindrical short, empty, size S
Tray Cylindrical short, empty, size S
Cylindrical – The answer to the daily challenges in implantology. This compact tray comes without tools. In this tray, you can assort all your short drills (33.5 mm) which are necessary for the preparation of the implant site for an IMPLA Cylindrical implant. The intuitive set-up of the tray with a uniform color code and a special arrangement of the instruments provides for easy handling. As the tray manages without silicone plugs, it ensures maximum hygiene. Cylindrical Tray short, equipped with tools: article no. 635112
Details
Pilot drill short 2.0 mm,
Pilot drill short 2.0 mm,
Total length: 33.5 mmDiameter: Ø 2.0 mm The IMPLA pilot drill will help you determine the planned implant length and insertion vector. You will find the according depth marks on the spiral drills which can be verified with the length mark keys of the surgery tray.The drill collar of the IMPLA pilot drill has been constructed to accommodate the IMPLA depth stops as an addition. The IMPLA depth stops will provide a mechanical depth stop when drilling into the jaw bone for an even higher level of safety in implantology. The drill collar of the IMPLA pilot drill as well as the according depth stop are color-coded. This facilitates a clear and easy handling.
Details
Pilot drill long 2.0 mm,
Pilot drill long 2.0 mm,
Surgical pilot drill without internal cooling for different drill settings during the preparation of the implant site for the IMPLA implant lines Cylindrical, Dual Surface and Micro Retention (according to the drill protocol, limited use for Mini and Interim).
Details
Instrument contra-angle,
Instrument contra-angle,
Contra angle-driven 3 mm Allen key for insertion post of IMPLA implants for machine insertion. The key has a snap-in function for implants.
Details
Drill extension,
Drill extension,
 Guarantees comfortable and safe work evenin situations with limited interdental space. For the extension of the tool shaft for contra-angle 2.34 mm.
Details
bone thread cutter 5.3 mm,
bone thread cutter 5.3 mm,
Variante: 5,3 mm / universal
Precutting the thread reduces the screw-in torque especially in D1 and D2 bone qualities, to avoid overheating and extreme compression. Use the thread cutter considering the drilling protocol for Micro Retention and Dual Surface implants.
Details
Impla position key long (IPK long),
Impla position key long (IPK long),
As part of prosthetic planning, accurately defines the position of the implant in the master model, and guarantees identical implementation during surgery.
Details
pilot drill 1.8 mm,
pilot drill 1.8 mm,
The pilot hole created by the pilot drill in the bone guides the tip of the pre-drill which follows, and keeps it from slipping in difficult to reach areas or in unfavorably shaped jaw ridges.
Details
Long-term filter for Steribox M, 10 pieces
Variante: Langzeitfilter für Steribox M
10 long-term filters for your Steribox size S, M or L. Long-term filters made of ePTFE for steam sterilization or gas sterilization. The filters must be exchanged at the latest after 100 cycles or once a year.(1 cycle = cleaning, disinfection and sterilization)
Details
IMPLA position key (IPK),
IMPLA position key (IPK),
As part of prosthetic planning, accurately defines the position of the implant in the master model, and guarantees identical implementation during surgery.
Details
Insertion aid for Mini implant balltop,
Insertion aid for Mini implant balltop,
The tool’s working tip fits over the Torx connector of the Mini Balltop implant. It can be used by hand, or with the torque ratchet. A drilled hole safety cord is located in the turntable of the grip.
Details
hex screwdriver long, width 2.3,
hex screwdriver long, width 2.3,
Variante: lang
This screwdriver with ratchet connection is a 2.3 mm hex and can be used either in connection with the torque ratchet or manually. The screwdriver 2.3 mm fits directly into the inner hex of the IMPLA Hex implants. It is used to adjust the screw-in depth after removing the insertion post (e.g. to correct the position of the hex). What's more, it serves as a screwdriver for SAE cone adapters. The tool has a hole through which it can be secured with a thread.
Details
adapter ratchet for Locator adapter contra-angle,
adapter ratchet for Locator adapter contra-angle,
Tool for manual unscrewing the Locator abutment in conjunction with 636075 in the torque ratchet.
Details
screwdriver width 2.3 mm, machine-driven
screwdriver width 2.3 mm, machine-driven
The screwdriver with contra-angle connection offers a 2.3 mm hex connector. With help of the contra-angle, it is used to screw in two-piece IMPLA implants automatically and directly. The screwdriver 2.3 mm fits exactly into the inner hex of the IMPLA Hex Connection implants to insert them. Furthermore, it serves as a screw-in instrument for SAE cone adaptors.
Details

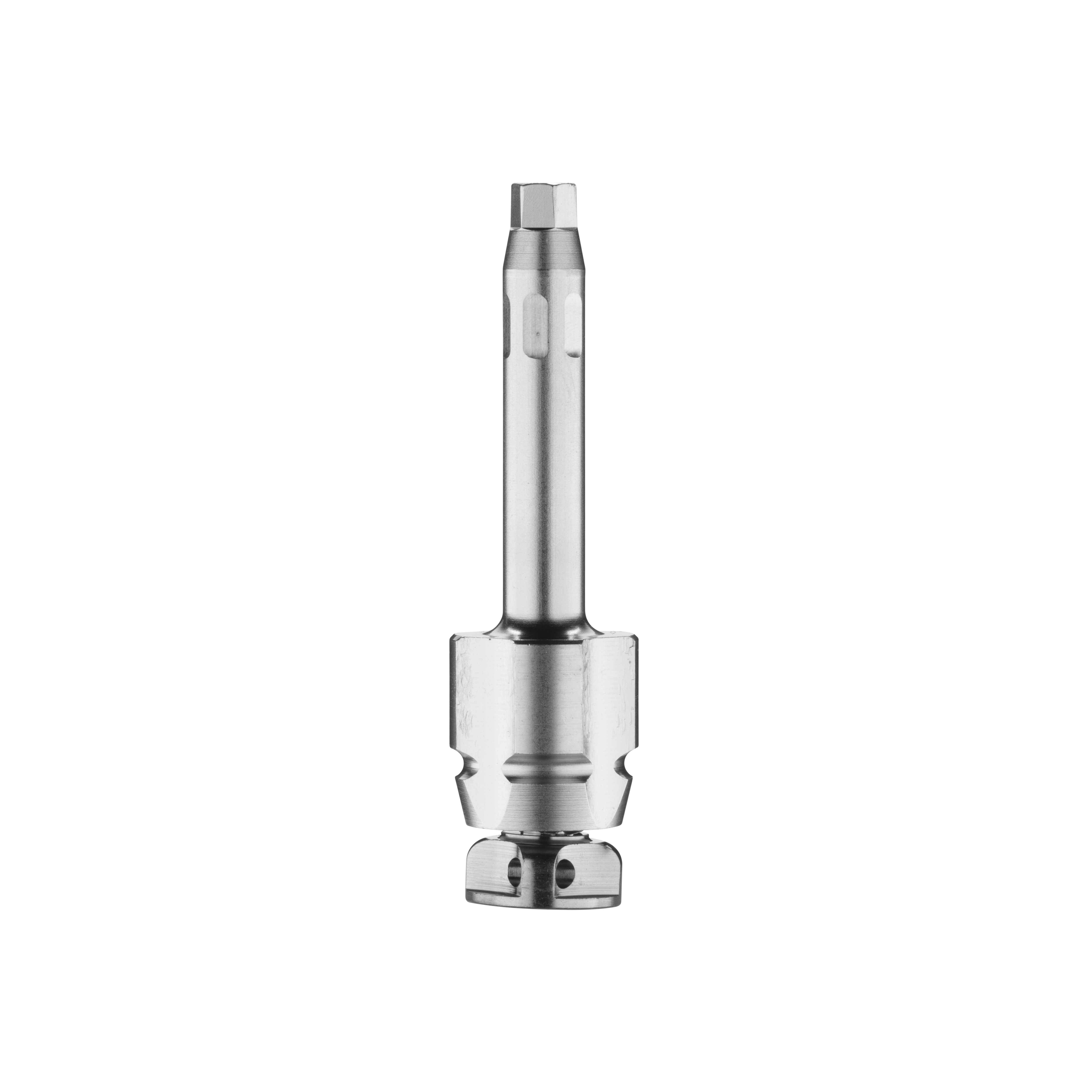

hex screwdriver long, width 1.2,
hex screwdriver long, width 1.2,
Variante: 1,2 mm / lang
The required torque for the retaining screw is exerted with the help of the torque ratchet. This long version of the screwdriver can be used in jaws with teeth, in the anterior area. It has a 1.2 mm hexagon at the tip. A drilled hole for a safety cord is located in the turntable of the screwdriver grip.
Details
insertion aid (for ratchet) long, width 3,
insertion aid (for ratchet) long, width 3,
Variante: Schlüssel für Eindrehhilfe lang, SW 3
The tool’s working tip fits onto the external hexagon of the insertion post. It can be used by hand, or with the torque ratchet.  This long version of the tightening aid can be used in jaws with teeth, in the anterior area. A drilled hole safety cord is located in the turntable of the grip.
Details
Pilot drill 1.2 mm,
Pilot drill 1.2 mm,
The pilot hole created by the marking drill in the bone guides the tip of the pilot drill which follows, and stops it slipping in difficult to reach areas, and in unfavourably shaped jaw ridges. The drill has laser markings matching the implant lengths and so can also be used as a pilot drill.
Details
Insertion aid 2.5 mm for Cone Connection 5.3 mm
Insertion aid 2.5 mm for Cone Connection 5.3 mm
Variante: kurz
Ratchet tool to change the insertion depth or the hex position of IMPLA Cone Connection implants after removal of the insertion post (part of the packaging).The tip of this tool fits precisely into the implant geometry. It can be used manually or with a torque ratchet,.
Details
Insertion aid 2.0 mm for Cone Connection 3.3/4.2 mm
Insertion aid 2.0 mm for Cone Connection 3.3/4.2 mm
Variante: lang
Ratchet tool to change the insertion depth or the hex position of IMPLA Cone Connection implants after removal of the insertion post (part of the packaging).The tip of this tool fits precisely into the implant geometry. It can be used manually or with a torque ratchet,.
Details
Depth gauge 6.5 mm - 14.5 mm,
Depth gauge 6.5 mm - 14.5 mm,
For checking the plant implant insertion depth after use of the pilot drill 2 mm and of the extension drill according to the implant diameter. For checking the orientation / divergence of the implants.
Details
Insertion aid machine-driven with contra-angle connector, for Mini balltop
Insertion aid machine-driven with contra-angle connector, for Mini balltop
The tool’s working tip fits over the Torx connector of the Impla Mini Balltop implant. It can be used either manually, (adapter for elbow instruments 636077) or with the contra angle.
Details
Gingiva former, cylindrical 4.2/3 mm, sterile,
Gingiva former, cylindrical 4.2/3 mm, sterile,
Variante: 4,2 mm / 3 mm
The cylindrical gingiva former is used to shape the gums after re-opening, or alternatively during transgingival healing. This extends the implant to a ""supra gingival mucous membrane level"". The cylindrical shape is chosen for its delicate emergence profile, particularly with narrow gaps, or where several implants are close together.
Details
Gingivaformer cylindrical 3.3/3 mm, (for Cone Connection), sterile
Gingivaformer cylindrical 3.3/3 mm, (for Cone Connection), sterile
Variante: 3,3 mm / 3 mm
Cone ConnectionThe cylindrical gingiva former is used to form the gingiva after reopening the implant site. In this process, the implant is extended to a supragingival mucosa level. The cylindrical shape is selected for a graceful emergence profile, especially in cases of very narrow gaps or closely placed implants.
Details
contra-angle adapter width 1.2 mm short,
contra-angle adapter width 1.2 mm short,
Variante: 1,2 mm / kurz
This can be used either manually (adapter for elbow instruments 636077) or with the elbow attachment. The short version is used for jaws without teeth, or in cases where the mouth opening is limited. It has a 1.2 mm hexagon at the tip.
Details
Gingivaformer conical 3.3 / 2 mm, Hex Connection
Gingivaformer conical 3.3 / 2 mm, Hex Connection
Variante: Gingivaformer konisch 3,3 / 2 mm
These gingiva formers were specially developed to support IMPLA Hex Connection Abutments with the new emergence profile.They have a slightly conical shape which comes about through the new emergence profile. This shape makes them especially but not exclusively well-suited for cases where the gingiva can already be formed before the final prosthetic is inserted which can support the creation of an excellent emergence profile. The gingiva formers come in sterile packaging which saves you the sterilization time before use.
Details
Gingiva former conical 4.2/3 mm, (for Cone Connection), sterile
Gingiva former conical 4.2/3 mm, (for Cone Connection), sterile
Variante: 4,2 mm / 3 mm
Titanium grade 5 healing component with processed emergence profile for implants in the conical connection range. With this, you can displace the gingiva without any pain, in order to prepare an aesthetically appropriate design of the final prosthesis. The formers can be fitted over the crestal 1.2 mm hexagonal connector both manually and mechanically. ,
Details
Insertion aid long machine-driven 2.0 mm, (for Cone Connection 3.3/4.2 mm)
Insertion aid long machine-driven 2.0 mm, (for Cone Connection 3.3/4.2 mm)
Variante: Eindrehhilfe lang, masch. 2,0 mm
Screwdriver with connection geometry 2 mm for all Cone Connection implants. For making fine adjustments to the implant in the bone after the insertion post which comes with the implant packaging has already been removed (Cone Connection series, diameter 3.3 mm and 4.2 mm). The screwdriver can be used with a contra-angle, manually with the adapter art. no. 636077 or with the torque ratchet.
Details
open-end pick-up,
open-end pick-up,
This open ended wrench is needed for transfer of the implant into the IPK wrench, and insertion via the drilling template. The open ended wrench can also be used for non-contact removal of the implant from the packing, even where the opening of the patient’s mouth is limited (Pick Up technique).
Details
Internal water nozzle for Surgic XT,
Impla drilling equipment have an internal coolant supply. With the corresponding 90° angled water jet, the coolant can be supplied to the tip of the drilling equipment internally.
Details
Clamp for Surgic XT,
Attaches the coolant pipe from the pump on the Surgic XT motor to the head on the drilling tool, so that it doesn’t slip or get caught.
Details
